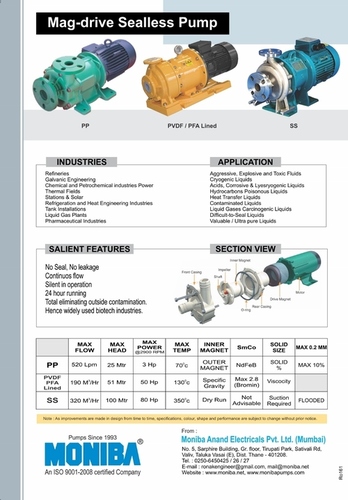

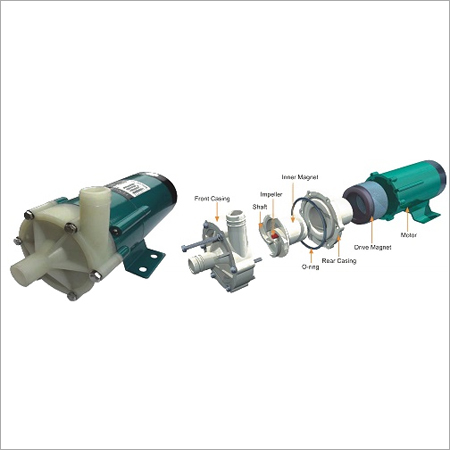

Mag Drive Sealless Pump
Product Details:
X
Product Description
Mag Drive Sealless Pump
Application
- Electroplating: For plating of gold, silver, cooper solution
- Chemical industries: Transfer of clear acid, costly chemical, avoid smell of acid from seal area.
- Bio tech industries: Prevent bacterial growth in sealing area.
- Pharmacy laboratory: For continues sampling circulation
- Photo film industries: For acid wash
- System manufacturer: Pump can be install in middle of system to avoid damage due to leakage in seal pump.
Salient Features
- No seal, no leakage
- Continuous flow
- Silent in operation
- 24 hours running
- Totally eliminating outside contamination. Hence widely used Biotech industries.
Technical Specifications
This parameters depend on size of pump
- Temperature max: 150oC
- Solid size: Max 0.2mm
- Sp gravity: Max 1.5
- Solid %: Max 10%
- Viscosity: 2000 CP
- Suction required: Floaded
- Can not run city
- Non self priming
| Pump Model | Phase | Suction | Delivery | Motor HP RPM 2900 | Flow range in LPM | Head range in mtr. | Material for casing |
| MMP-1 | 1 | 14mm | 14mm | 3/16 | 0-15 | 2.4-0 | Glass filled PP |
| MMP-2 | 1 | 18mm | 18mm | 1/14 | 0-30 | 2.4-0 | Glass filled PP |
| MMP-3 | 1 | 20mm | 20mm | 5/16 | 0-50 | 4-0 | Glass filled PP |
| MMP-4 | 1 and 3 | 25mm | 25mm | 3/8 | 0-80 | 6-0 | Glass filled PP |
| MMP-5 | 1 and 3 | 25mm | 25mm | 1/2 | 0-115 | 10-0 | Glass filled PP/PVDF |
| MMP-7 | 3 | 1.5' BSP-F | 1.25 BSP-M | 1.5 | 0-280 | 20-0 | Glass filled PP/PVDF |
| MMP-6 | 3 | 2 NPT-F | 1.5 NPT-M | 3 | 0-520 | 25-0 | Glass filled PP |
| MMPSS-8 | 3 | 1.5 BSP-F | 1' BSP-M | 1 | 0-150 | 14.5-0 | SS 316L |
| MMPSS-9 | 3 | 2 BSP-F | 1.5 BSP-M | 2 | 0-300 | 18-0 | SS 316L |
| MMPSS-3 | 1 | 20mm | 20mm | 5/16 | 0-50 | 4-0 | SS 316L |
